1GB178450 Clutch Button

1GB178450 Clutch Button
1GB178450 Clutch Button
OEM No/Model:

178450 Racing Disc

Place of Region:

China

Market Type:

After Market

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

1GB178450 Clutch Button

Product Attribute:

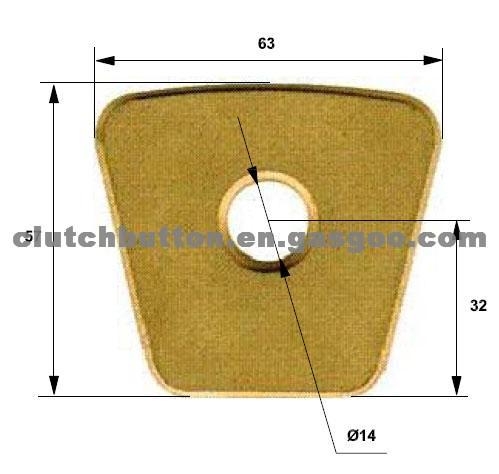

Teeth Quant:63X57

Application:

Heavy truck& tractor , Racing car

Product Description:

1:We have two different processes. You can find special parameter as following picture.


            process
                                             Parameter		      Copper Base ,Foil-Sintered  Copper Base Sprinking-sintered
Wet Application Dry Application  Wet Application
Dynamic Coefficent μd 0.050.08 0.20.35 0.060.10

Static Coefficient μd 0.120.16 0.20.35 0.120.16

Wear Ratio cm3/J 5x10-8 5x10-7 5x10-8

Pressure (Max.)N/mm2 3.56 13 46

Energy x Power  Cm 2000040000   2500045000

2: We have three different types surface and can produce according different market.
One is normal, it is popular in various aftermarket in normal market.
Other is Black surface .They are good market in America market.
The third type is Miba surface. They are so popular in Indian markets.
3:We can supply in different material .
One is ceramic. ----More aggressive, higher torques, low wear.

Other is Iron. ------ Better heat resistance , smoother engagement than ceramic, good wearEasy on mating surfaces.
1GB178450 Clutch Button
1GB178450 Clutch Button
